RadiantShield Premium 7

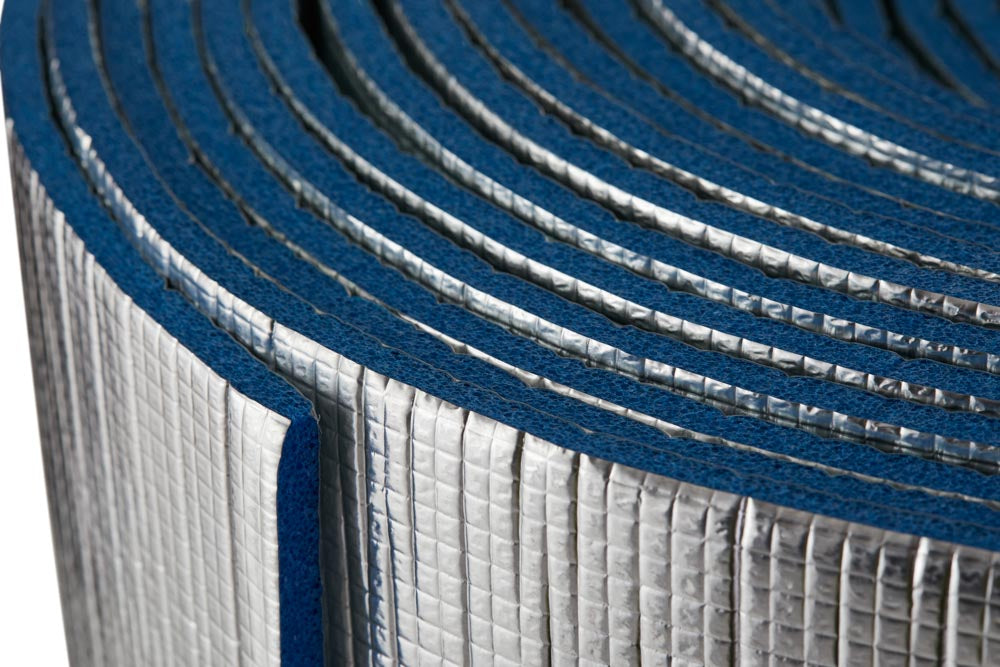

Our Premium range is specifically designed for large-scale building operations. RadiantShield Premium is composed of a 7 mm XPE foam core.
It's worth noting that XPE and EPE differ significantly in their construction despite their apparent similarities. Additionally, we have ensured that this product meets the flammability requirements for building materials as stipulated under the BCA.

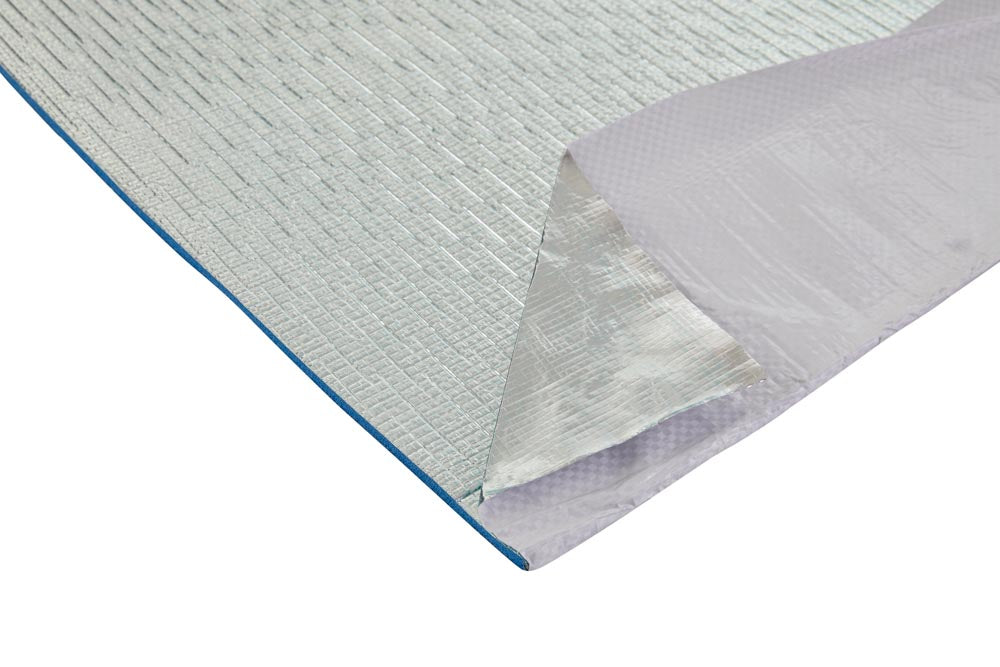

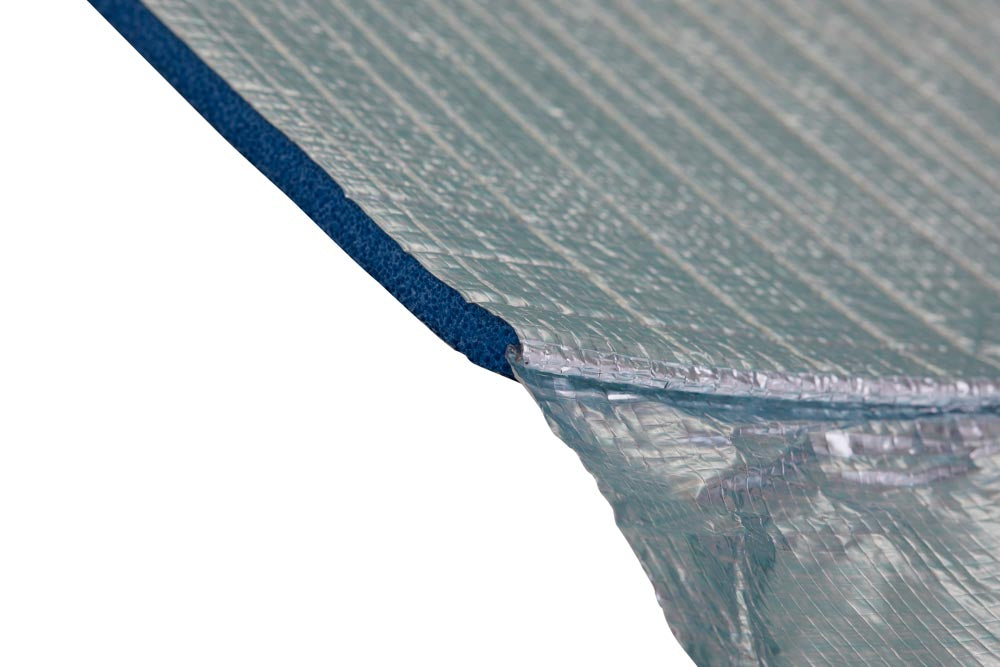

The outside surface is polished aluminium with a woven mesh for added strength. It is also coated with a light blue anti-glare finish to aid on-site installation.

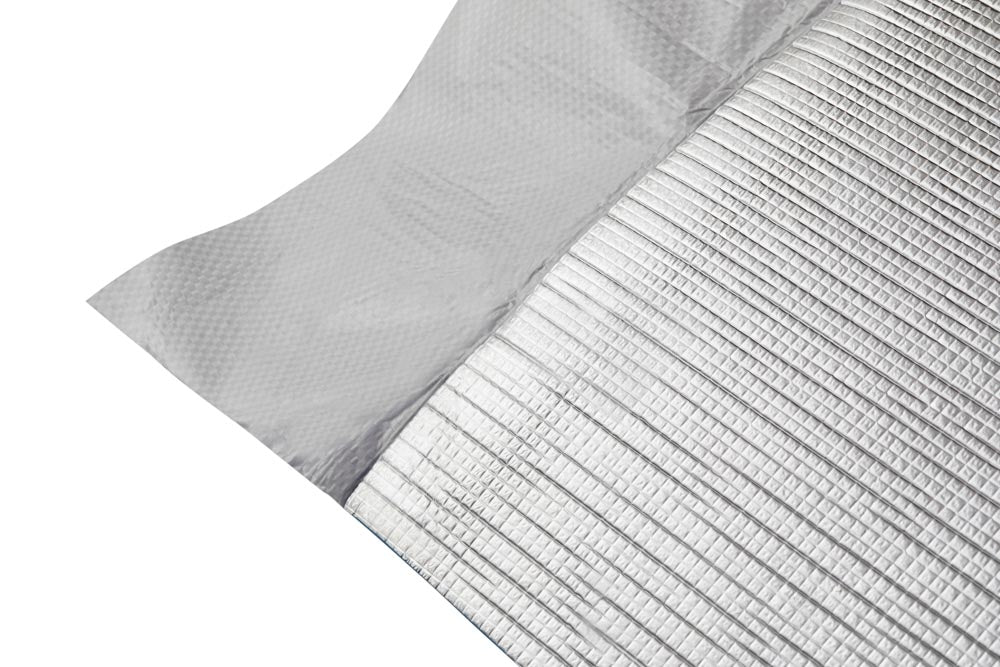

RadiantShield Premium features a 150 mm foil overlap flap for optimal coverage and reduced taping requirements.
Specifications:
- 1.35 m width (PLUS an additional 150 mm overlap of the woven silver face foil)
- Light-blue Anti-Glare Coating on one side
- Woven Reinforced on Anti-Glare side
- 7 mm XPE Foam
- Flammability Index 1
- Reflectivity 95-97%
Background
Solavis RadiantShield Premium Insulation is a high-performance insulation designed to combat heat gain and loss in all three forms - radiation, convection, and conduction. As a vapour barrier, RadiantShield Premium is superior to many conventional insulation types, resulting in exceptional thermal performance.
RadiantShield Premium is a versatile insulation product suitable for various residential applications such as ceilings, roofs, walls, and underfloor. The insulation comprises a fire-retardant XPE foam sandwiched between two layers of 99+% pure aluminium foil. This innovative design enables the insulation to reflect up to 96% of radiant heat, keeping your home comfortable throughout the year.
Solavis RadiantShield Premium is fibre-free insulation that replaces conventional insulation and achieves over R3.0 for summer in residential ceiling applications while fully compliant with ASNZS 4859.1.
Our reflective insulation has a foil facing on both sides, which reflects heat for summer and winter conditions. Single-sided foils only reflect heat in one direction.
Performance
Tiled Roof with RadiantShield installed on top of 90 mm Joists: R3.1 (Summer) | R1.1 (Winter)
Pitched Metal Roof with RadiantShield installed on top of 90 mm Joists: R3.0 (Summer) | R1.4 (Winter)

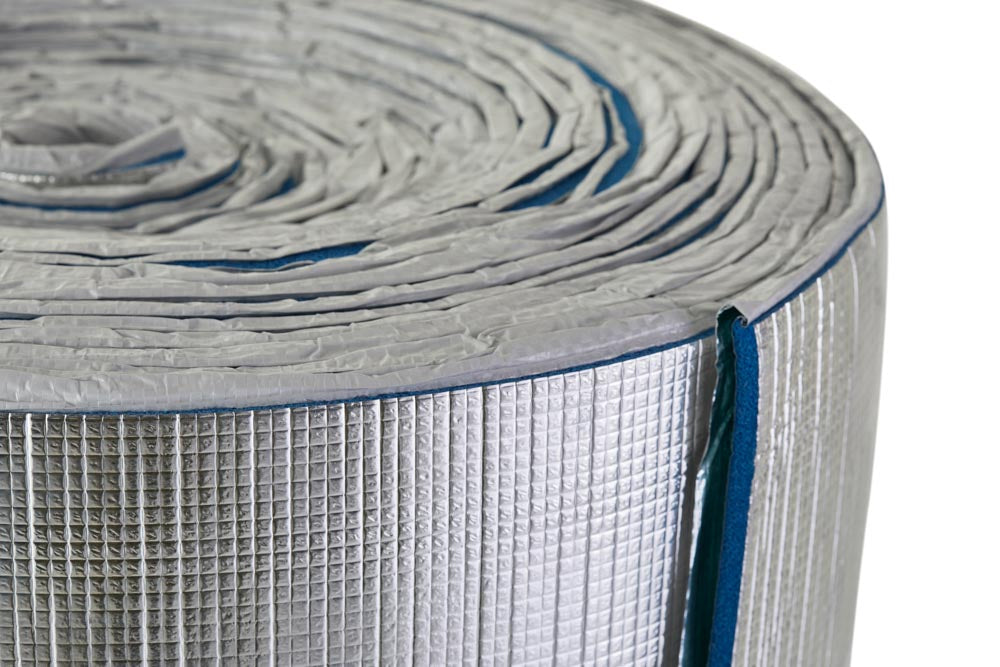

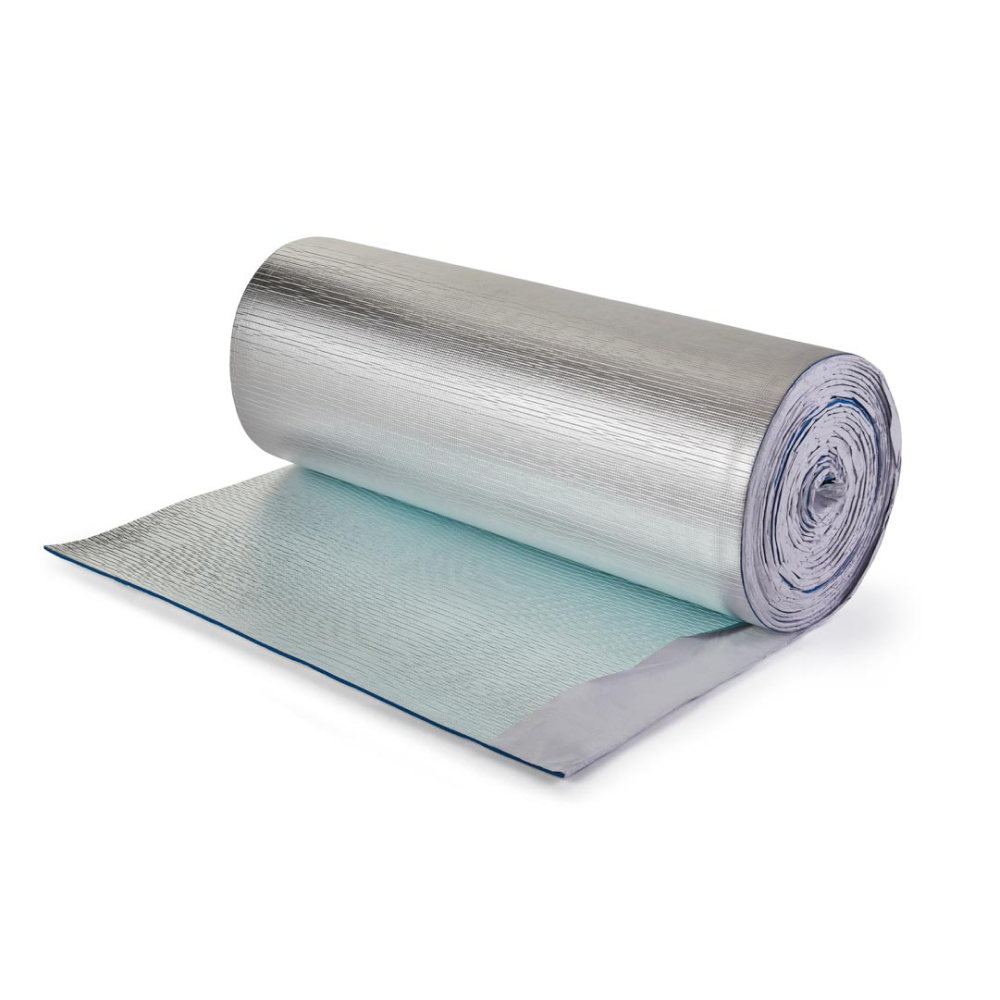

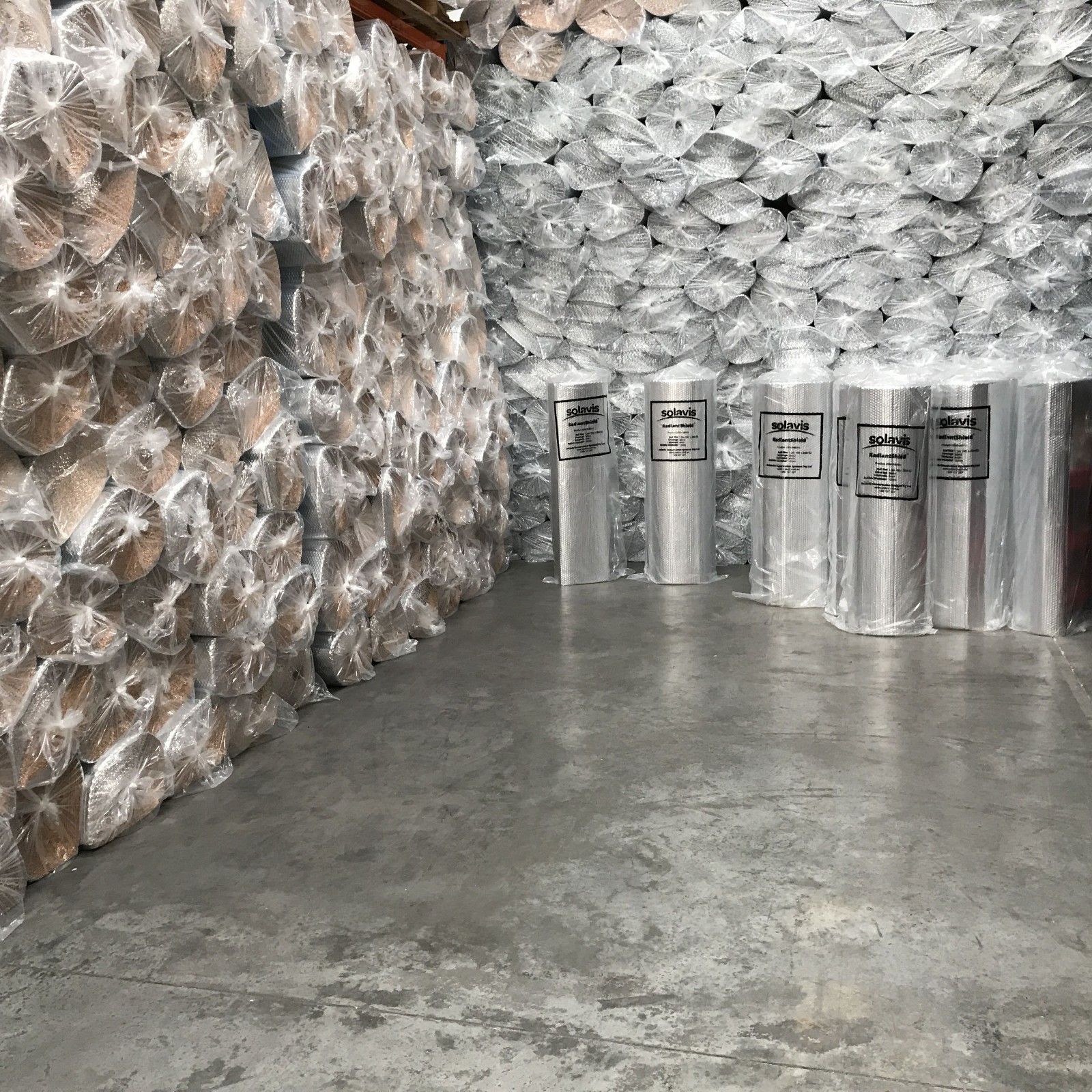

Roll dimensions:
30m² 1.35 m wide x 22.2 m long
RadiantShield Composition
| External surface coating |
Anti-corrosion treatment |
| External surface |
Pure aluminium foil |
| Inner core composition: |
Fire retardant XPE foam core |
| External surface: |
Pure aluminium foil |
| External surface coating: |
Anti-corrosion treatment |
