RadiantShield Premium 4

RadiantShield Premium 4

Regular price $135.00 AUD
Regular price Sale price $135.00 AUD
Sale Sold out
Tax included.
Coverage

RadiantShield Premium

Our Premium range is suitable for large-scale building operations. RadiantShield Premium comprises a 4 mm XPE foam core. Although XPE and EPE may look similar, there are significant differences in their construction. Notably, with this product, we've achieved compliance with the flammability requirements for building materials as stipulated under the BCA.

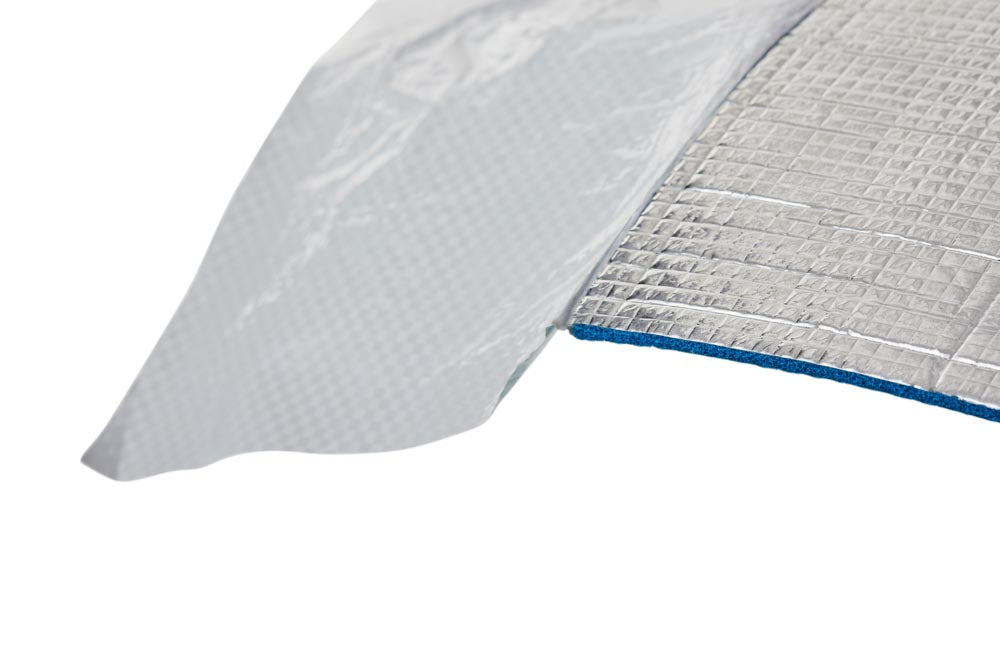

The outside surface is made of Polished aluminium, as usual. Still, it's also reinforced with a woven mesh for severe strength and coated with a light green anti-glare finish to make it easier for the trades on-site during installation.

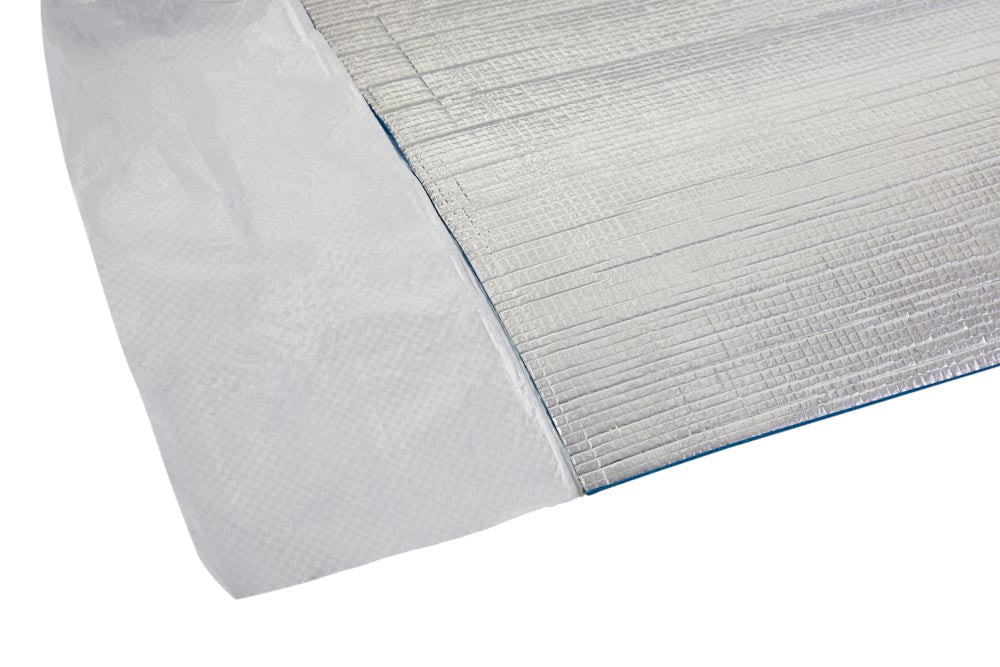

Additionally, RadiantShield Premium also has a 150 mm foil overlap flap, offering optimal coverage (flap maximises coverage area and minimises taping).

Specifications:

  • 1.35 m width (PLUS an additional 150 mm overlap of the woven silver face foil)
  • Light-blue Anti-Glare Coating on one side
  • Woven Reinforced on Anti-Glare side

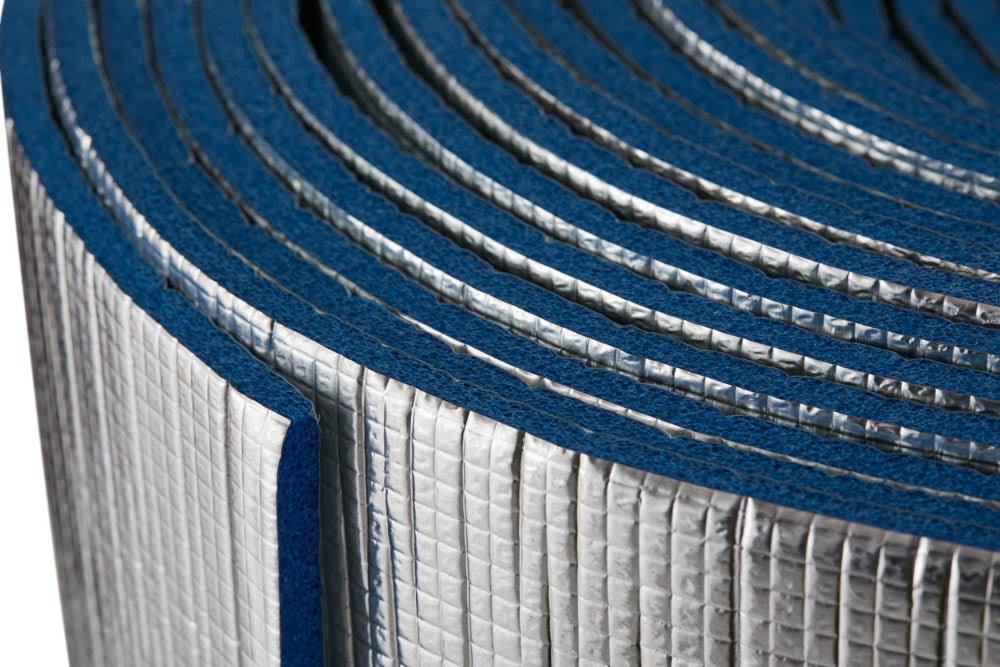

  • 4 mm XPE Foam
  • Flammability Index 1
  • Reflectivity 95-97%

Background

Solavis RadiantShield Premium Insulation has been developed as a vapour barrier and high-performance insulation. RadiantShield Premium is designed to combat heat gain and loss in all three forms (radiation, convection, and conduction), resulting in thermal performance superior to a considerable amount of traditional insulation.

RadiantShield Premium is suitable for residential ceiling, roof, wall and underfloor applications. Solavis RadiantShield Premium insulation comprises a fire-retardant XPE foam sandwiched between two 99+% pure aluminium foil. It reflects up to 96% of the radiant heat to achieve thermal comfort inside the home all year round.

Solavis RadiantShield Premium is a clean, safe and fibre-free insulation designed to replace conventional bulk insulation. It fully conforms with ASNZS 4859.1 and achieves over R3.0 for summer in residential ceiling applications.

Because our reflective insulation is foil facing on both sides, it will provide benefits by reflecting heat for both summer and winter conditions (compared to single-sided foils, which only reflect heat in one direction).

Performance

Tiled Roof with RadiantShield installed on top of 90 mm Joists: R3.1 (Summer) |  R1.1 (Winter)

Pitched Metal Roof with RadiantShield Installed on top of 90 mm Joists: R3.0 (Summer) | R1.4 (Winter)

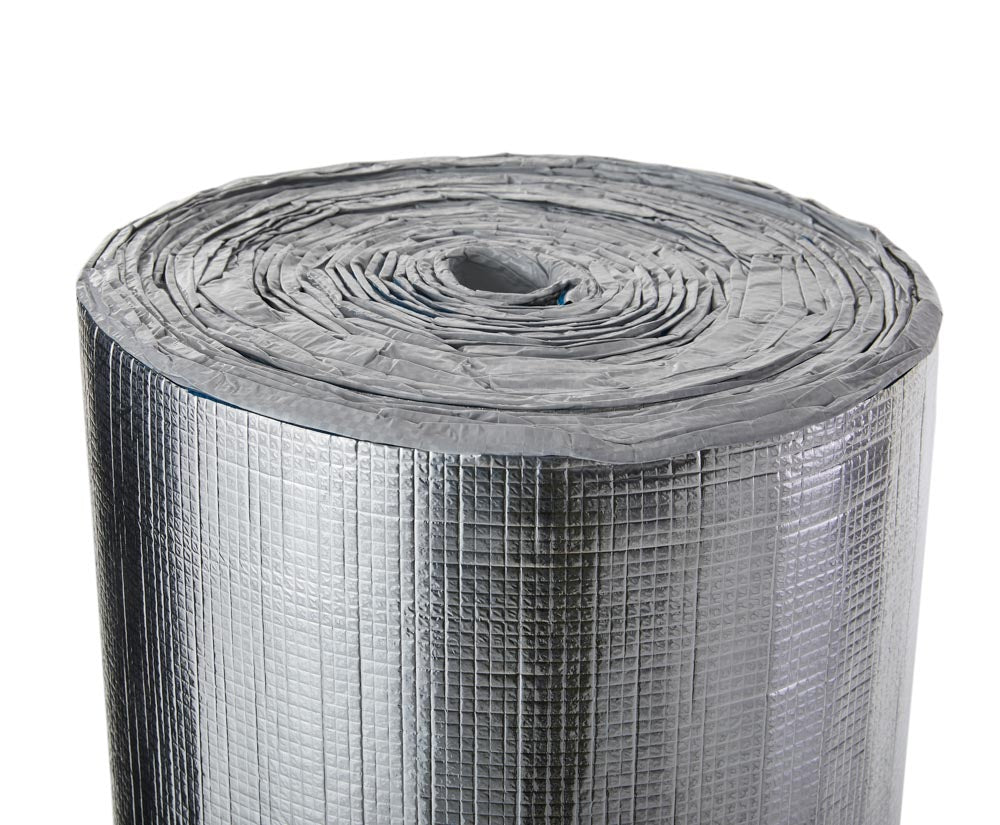

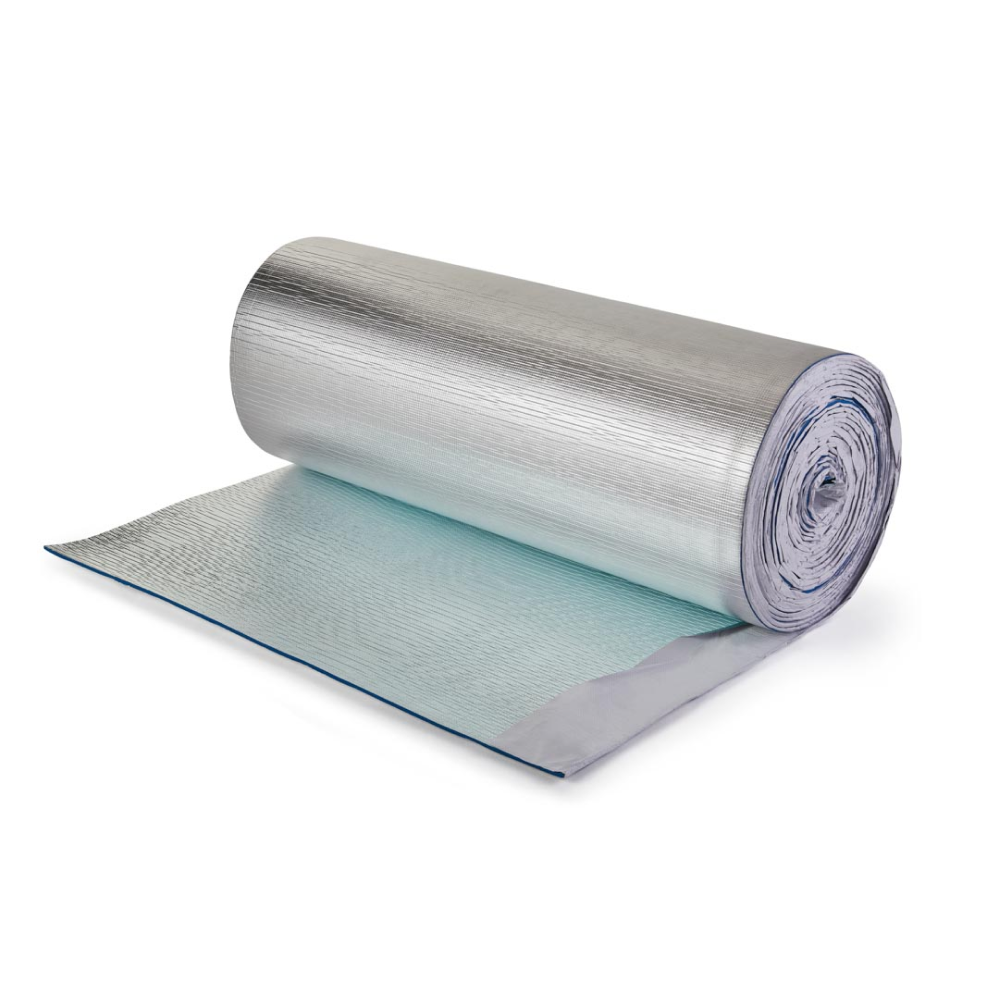

Roll dimensions:

30m²  1.35 m wide x 22.2 m long

15m²  1.35 m long x 11.1 m long



RadiantShield Premium Composition

External surface coating Anti-corrosion treatment
External surface Pure aluminium foil
Inner core composition: Fire retardant XPE foam core
External surface: Pure aluminium foil
External surface coating: Anti-corrosion treatment
